102T 5.5″ Aluminum Bellhousing Kits

by Tilton
Original price $2,730.00 - Original price $8,990.00
Original price
$2,730.00 - $8,990.00
Current price $2,730.00

102T 5.5″ Aluminum Bellhousing Kits feature a family of matched components to offer the highest level of performance and reliability. Designed for applications that require a compact bellhousing for maximum ground clearance, rear-mount starter, small diameter flywheel, and a 5.5” clutch.

Typical Applications

  • Trans Am (TA/TA2)
  • GT1
  • Late Model
  • Super Late Models
  • Asphalt Modifieds

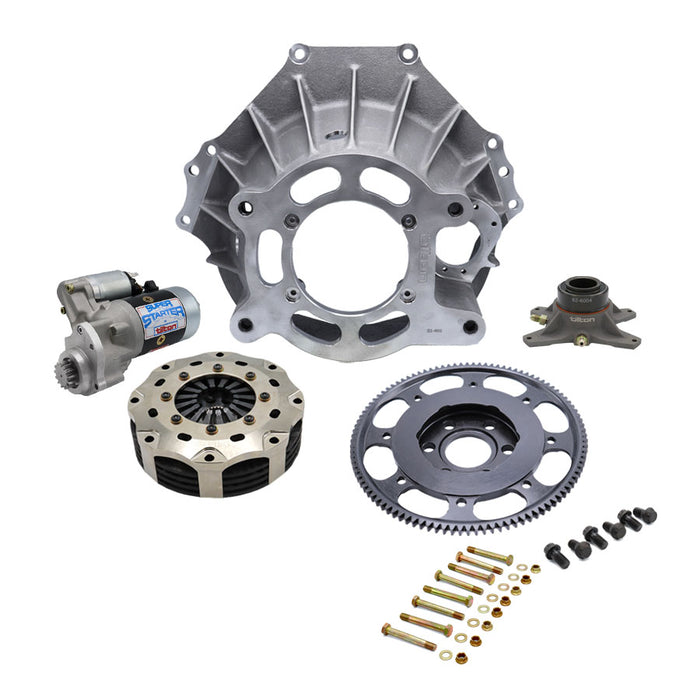

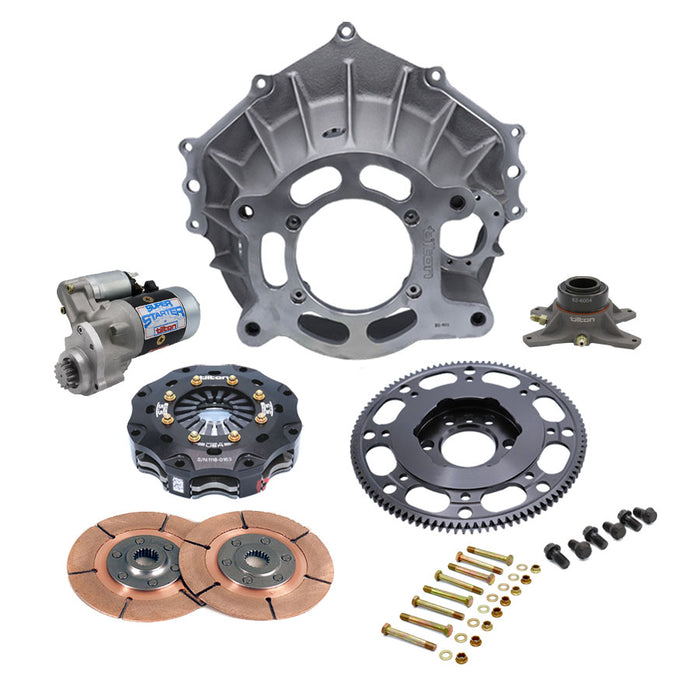

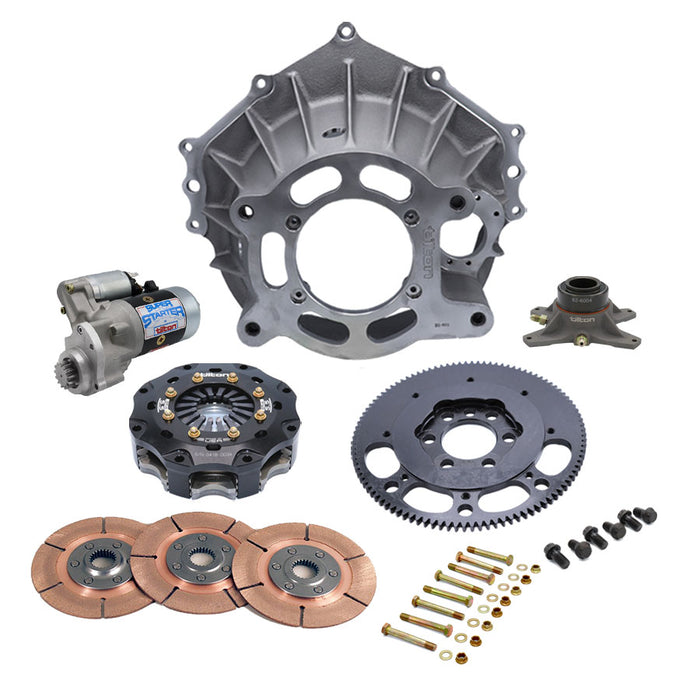

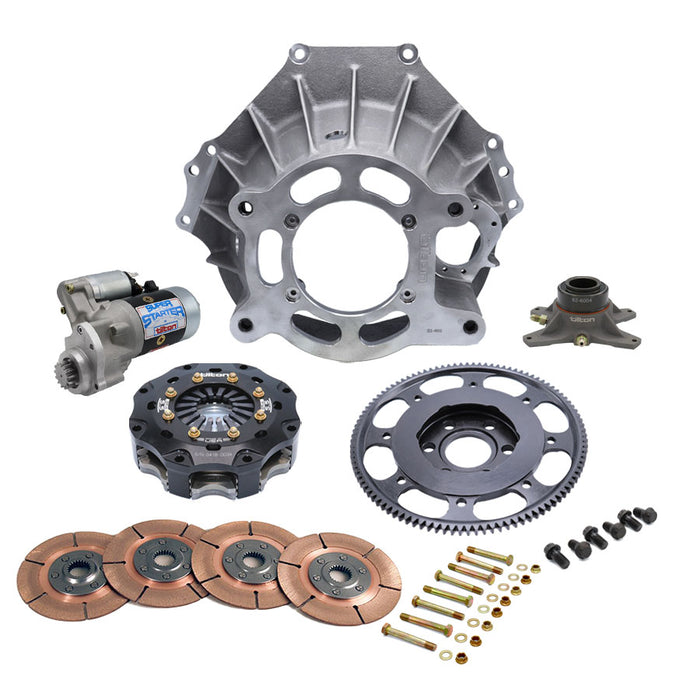

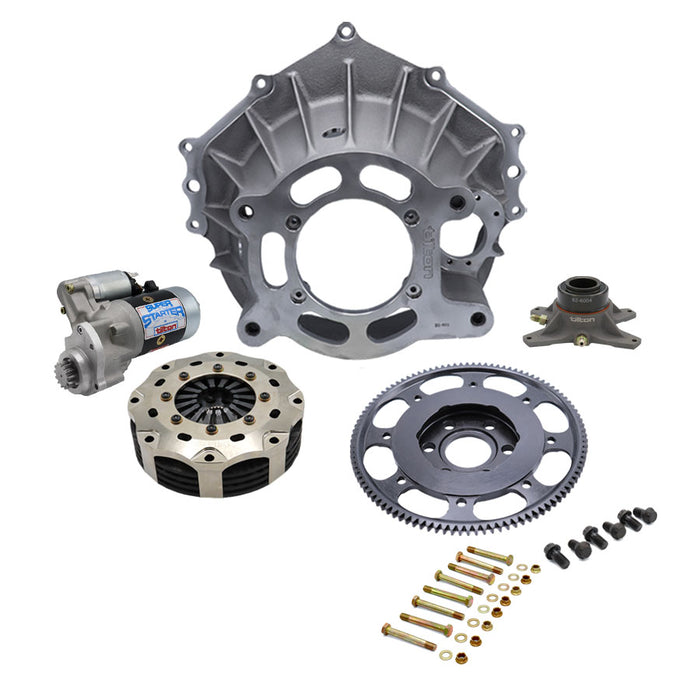

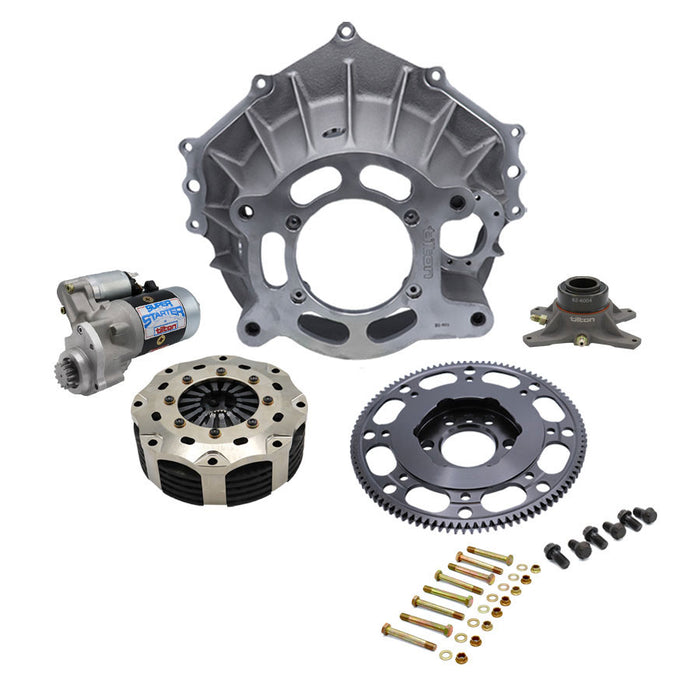

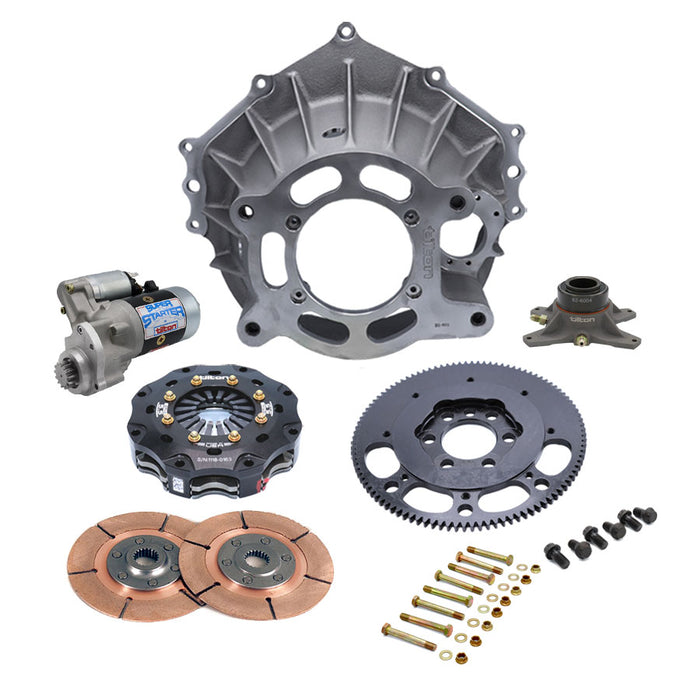

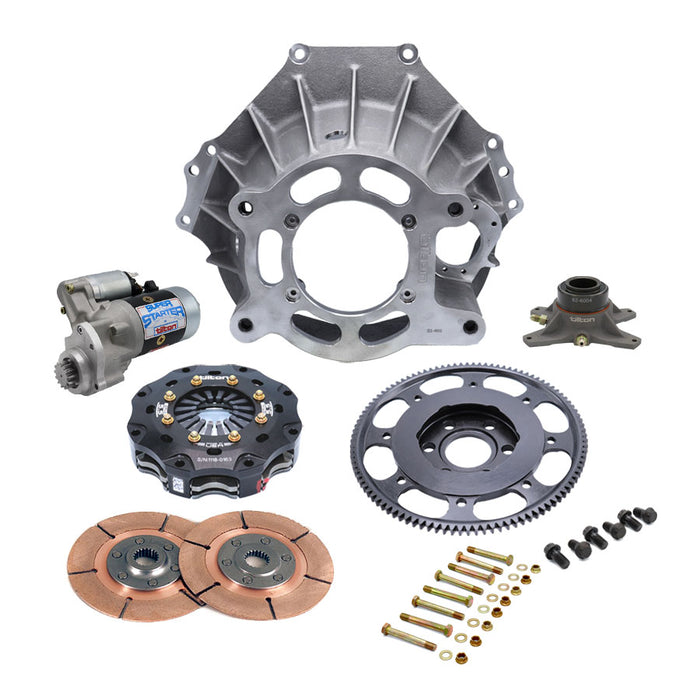

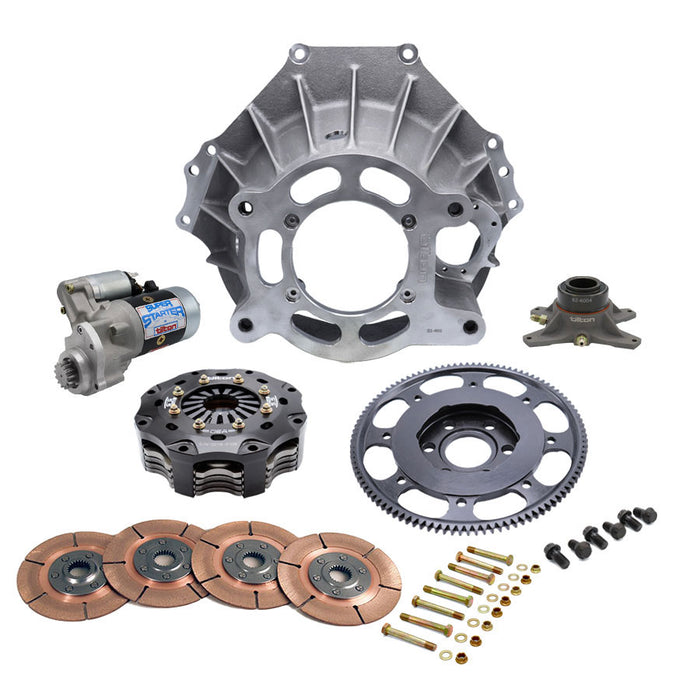

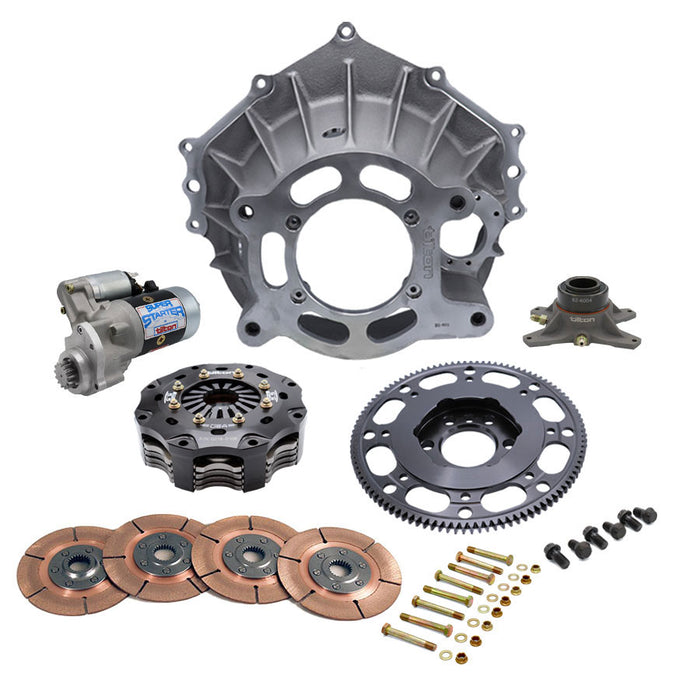

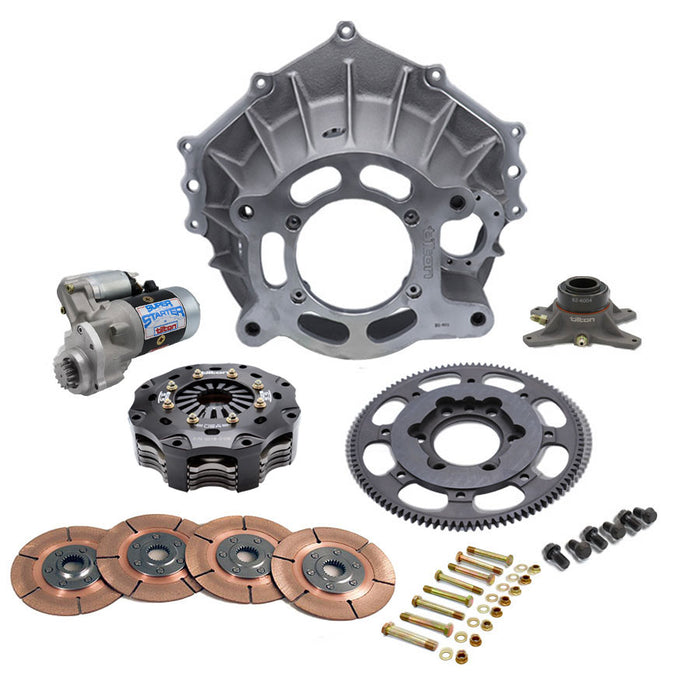

102T 5.5″ Bellhousing Kits include:


  • Rigid aluminum rear-mount starter bellhousing designed to resist flexing
  • Compact design provides increase ground clearance and exhaust header clearance. Distance from centerline of crankshaft to bottom of bellhousing is only 4.7”
  • Accepts transmissions with Chevy 4-bolt mounting pattern and 4.68” register diameter
  • Blueprinted for parallelism and concentricity
  • Weighs 10.4 lbs

Clutch-Flywheel Assembly

  • OT-III 5.5” metallic or carbon/carbon clutch. 3-disc and 4-disc options
  • Billet steel 102-tooth (8.64”) flywheel
  • 26-spline clutch disc pack
  • Aircraft-grade clutch bolts
  • High-strength ARP flywheel bolts

Hydraulic Release Bearing

  • 5300-Series hydraulic release bearing
  • 38mm contact diameter bearing
  • 4-bolt bellhousing mounted

Super Starter

  • 40000-Series 3.0HP high-torque gear reduction mini starter
  • Side-bolt mounting design provides secure mounting to bellhousing and easy access for service.
