PLM - Pro Lambda Meter Kit, NTK 2.6m

by MoTec
Sold out
Original price $1,375.00 - Original price $1,375.00
Original price
$1,375.00
$1,375.00 - $1,375.00
Current price $1,375.00

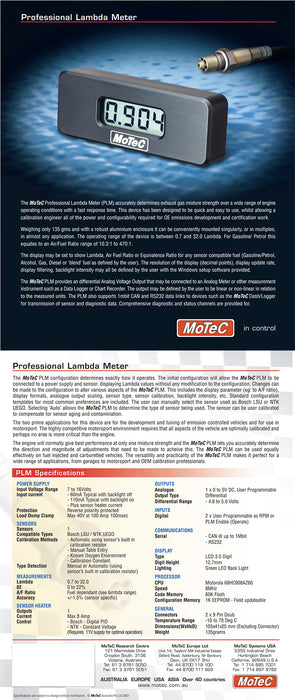

Pro Lambda Meter Kit, NTK, 2.6 meter


General:

  • CAN communications up to 1 Mbit
  • RS232 communication for configuration
  • Analogue output providing differential voltage
  • Maximum 8 ampere sensor heater
  • Multiple PLMs (up to 16) can be connected together
  • Available as part of complete kits
  • Usable as an alternative to wideband Lambda upgrades in MoTeC ECUs and Dash Loggers
  • 2 x 9 pin Dsub connector
  • Robust aluminum enclosure

Measurement/Configuration

  • Comprehensive diagnostic and status channels
  • Standard configuration tables
  • Configurable to compensate for sensor aging and contamination
  • Accuracy +/– 1.5%

Compatible fuel:

  • Gasoline/petrol
  • Alcohol
  • LPG
  • Diesel
  • User defined 'blend' fuel

Calibration methods:

  • Automatic, using the sensor's built-in calibration resistor
  • Manual table entry
  • Known oxygen environment
  • Calibration constant

Operating range:

  • Lambda 0.7 to 32
  • AFR 10.3 to 470 for gasoline/petrol
  • Oxygen 0 to 22%

 Display

  • Display configurable to show Lambda, Air Fuel Ratio or equivalence ratio
  • Flexible display setup configurable for resolution (decimal points), display update rate, display filtering and backlight intensity
  • Easy to read 3.5 digit LCD with 12.7 mm (½") digit height
