MoTeC CDI-8 (M1 ECU's)

by MoTec
Original price $2,080.00 - Original price $2,080.00
Original price
$2,080.00
$2,080.00 - $2,080.00
Current price $2,080.00

CDI-8

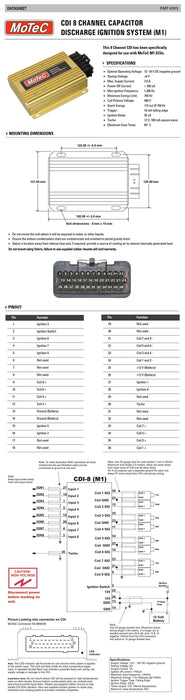

This 8 Channel CDI has been specifically designed for use with MoTeC M1 ECUs. This unit comes with the connector, seals and terminals.



Specifications:

  • Optimal Operating Voltage: 13 -18 V DC negative ground
  • Startup Voltage: +6 V
  • Max. Supply Current: 7.0 A
  • Power Off Current: < 700 uA
  • Max Ignition Frequency: 1,200 Hz
  • Maximum Energy Limit: 750 Hz
  • Coil Primary Voltage: 480 V
  • Spark Energy: 115 mJ @ 750 Hz
  • Trigger: 10 mA falling edge
  • Ignition Delay: 25 uS
  • Tacho: 12 V, 100 mA square wave
  • Maximum Case Temp: 85° C
